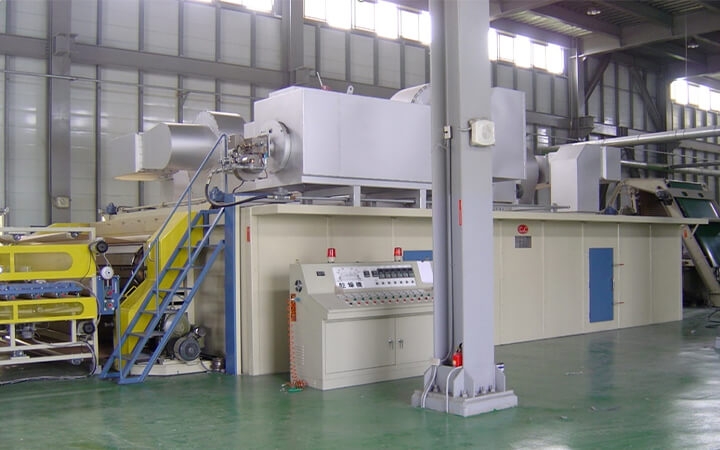

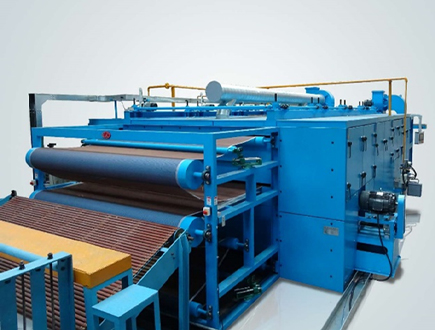

Product Name : Compression Nonwoven Oven
Product Description


  • Compression nonwoven oven can use electric heat exchangers、heat transfer oil boiler or gas/diesel oil burner to heat, and the heated hot air is passed through a thermal cycle windmill to melt the low-melting fiber. the upper conveyor net is lifted and lowered according to the product thickness and hardness requirements.
  • Usually the final product is suitable for automotive industry and bedding.

Technical parameters

Working width 1000-3000mm
Production speed 3-10M/min
Max working temp 220℃
Heating systems Electric heat exchangers
Heat transfer oil boiler
Gas/diesel oil burner
Conveyor net Flat conveyor
Adjusting the spacing of conveyor net Adjusting the height of up-flat conveyor by eletric lift
